The V/Drain Ultra is a drainage accessory designed for vehicles equipped with Replacement Bio-Seat Systems. It provides a controlled exit point for fluids that collect in the rear seating area, helping improve sanitation and reduce exposure to bodily fluids or chemical contaminants during prisoner transport.
The drain is installed directly through the vehicle floor pan at the lowest natural collection point. Once installed, the V/Drain compresses the floor padding to amplify the low point, allowing fluids to evacuate efficiently. A threaded drain body, sealing nut, and cap work together to secure the drain in place and protect the vehicle floor.
This accessory is intended for use in patrol vehicles where routine washdown, sanitation, or snow melt drainage is required in the rear compartment.
Key Features
- Drainage accessory for replacement bio-seat applications
- Helps remove fluids from rear seating area
- Compresses padding to improve drainage efficiency
- Threaded body with sealing nut for secure installation
- Includes removable cap to close drain when not in use
- Designed to reduce exposure to fluids and contaminants
| Hole Size Required | Mounting Method |
|---|---|
| 2" diameter | Through-floor installation with threaded nut |
Floor Plate Required:
- No
Compatible Systems:
- Replacement Bio-Seat Systems
Installation Location:
- Installed through the vehicle floor pan at the lowest fluid collection point in the rear seating area
Use Case:
- Allows fluids from washdown, bodily fluids, or snow melt to drain out of the vehicle, improving sanitation and protecting under-seat components
Installation Notes:
- Requires drilling a 2" hole through the vehicle floor
- Drain is installed from the interior with the sealing nut secured underneath the vehicle
- Cap should be installed after adhesive cures
Note: Multiple V/Drain Ultra units may be required per vehicle depending on floor pan design and drainage needs.

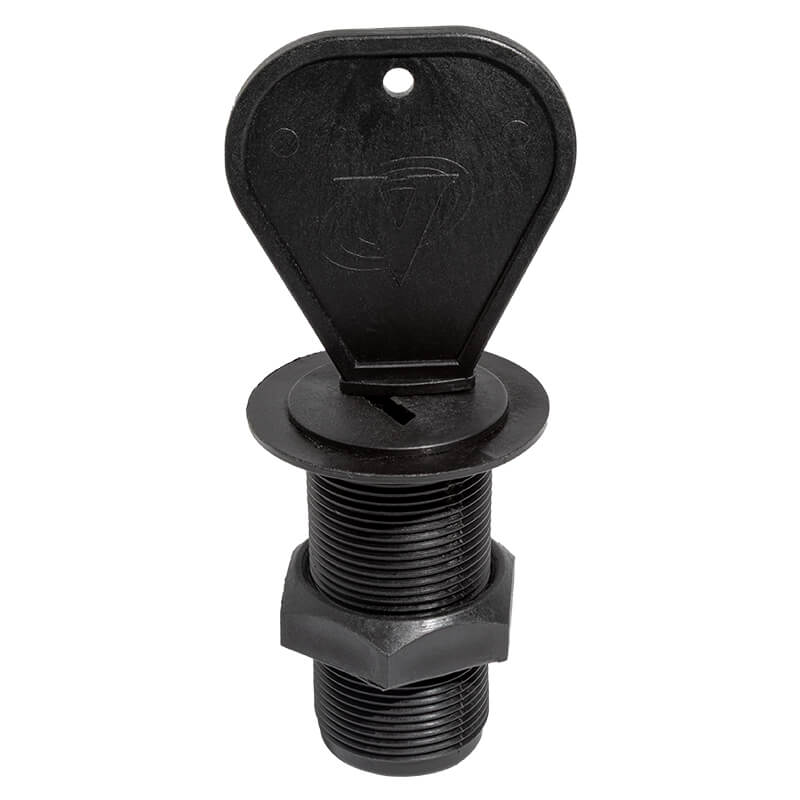

Accessory – V/Drain Ultra for Replacement Bio-Seat Systems
Description
The V/Drain Ultra is a drainage accessory designed for vehicles equipped with Replacement Bio-Seat Systems. It provides a controlled exit point for fluids that collect in the rear seating area, helping improve sanitation and reduce exposure to bodily fluids or chemical contaminants during prisoner transport.
The drain is installed directly through the vehicle floor pan at the lowest natural collection point. Once installed, the V/Drain compresses the floor padding to amplify the low point, allowing fluids to evacuate efficiently. A threaded drain body, sealing nut, and cap work together to secure the drain in place and protect the vehicle floor.
This accessory is intended for use in patrol vehicles where routine washdown, sanitation, or snow melt drainage is required in the rear compartment.
Key Features
- Drainage accessory for replacement bio-seat applications
- Helps remove fluids from rear seating area
- Compresses padding to improve drainage efficiency
- Threaded body with sealing nut for secure installation
- Includes removable cap to close drain when not in use
- Designed to reduce exposure to fluids and contaminants
Specifications & Compatibility
| Hole Size Required | Mounting Method |
|---|---|
| 2" diameter | Through-floor installation with threaded nut |
Floor Plate Required:
- No
Compatible Systems:
- Replacement Bio-Seat Systems
Installation Location:
- Installed through the vehicle floor pan at the lowest fluid collection point in the rear seating area
Use Case:
- Allows fluids from washdown, bodily fluids, or snow melt to drain out of the vehicle, improving sanitation and protecting under-seat components
Installation Notes:
- Requires drilling a 2" hole through the vehicle floor
- Drain is installed from the interior with the sealing nut secured underneath the vehicle
- Cap should be installed after adhesive cures
Note: Multiple V/Drain Ultra units may be required per vehicle depending on floor pan design and drainage needs.
